C-TK-4004 Secure Stride M This is a four-bar polycentric mechanical knee device. It has a mobility locking system that can prevent the knee from buckling. The user can choose to activate or deactivate the locking system depending on their need for stability. |
|

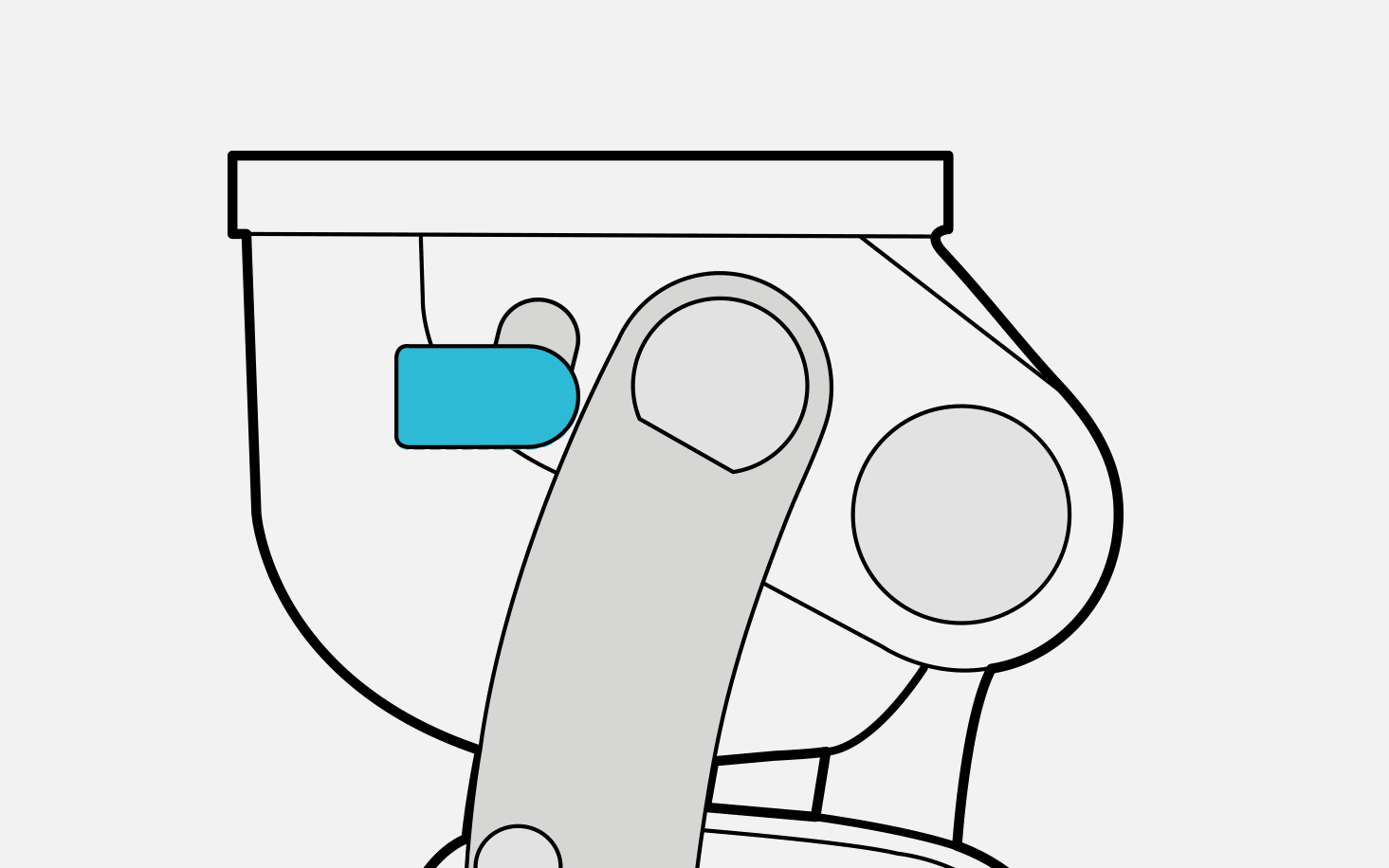

| Mobility Lock When the user needs maximum stability. As need, the user can easily switch free mode and secure mode. The switch has a universal design for right or left amputation.
|
Enjoy Activity further on uneven ground to prevent buckling standing on a ladder working making a golf swing…… Lock As Need |
|
Specification
- Key features
- Technical data
- Documents
| ‧ | Polycentric knee with adjustable mobility locking system. |
| ‧ | Provides secure safety when standing for rehabilitation, training, long periods of time, or uneven ground. |
| ‧ | The user can easily activate / deactivate the lock by moving a lock lever down / up. |
| ‧ | Rates of flexion and extension can be adapted to the user. |
| ‧ | Natural toe-clearance in swing supports a safer, more efficient gait. |
| ‧ | High knee flexion angle up to 155°. |
Material Aluminum ally | System weight 850g |
System height 160mm | Maximum flexion angle 155° |
Weight Limit 125kg | Mobility Class 1~3 |
