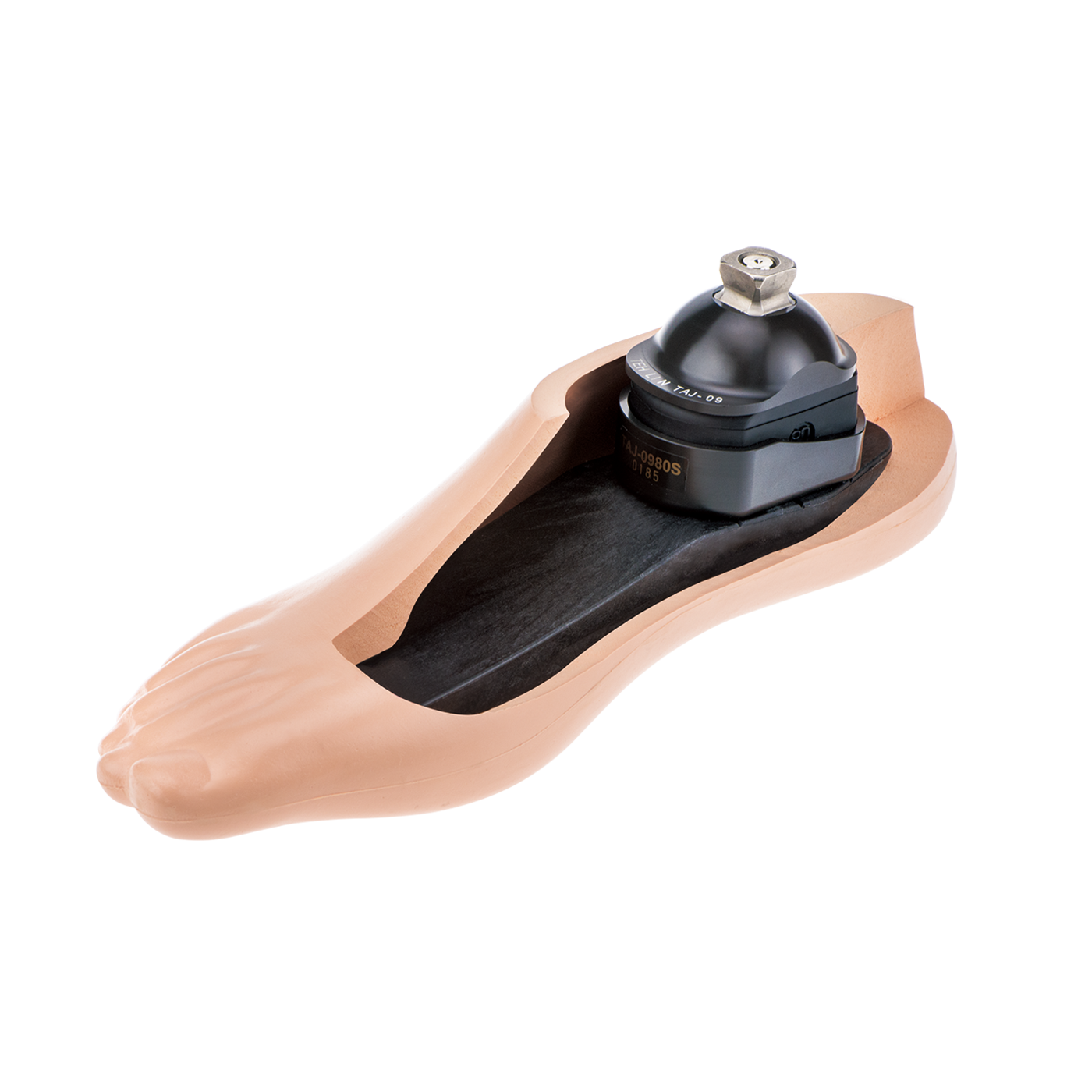

KARE DYNAMIC FOOT WITH ANKLE JOINT

Plantarflexion to dorsiflexion

Ultra-light graphite construction

F-TSF-09J

Material: Aluminum alloy, Stainless steel seat, Nylon, PU, Complex fiber

Size (cm): 22｜23｜24｜25｜26｜27｜28

Weight (g): 615｜645｜705｜720｜750｜770｜780

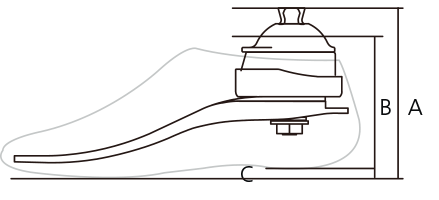

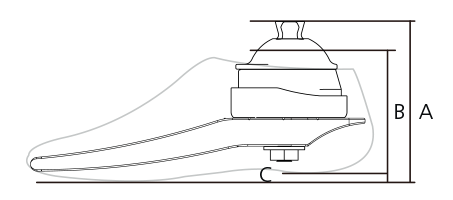

A: System height (mm):100｜103｜103.5｜104｜105｜105.5｜106

B: Build height (mm): 85.5｜88.5｜89｜90｜90.5｜91｜91.5

C: Heel height (mm):18

Maximum load: 80 kg (size22-23),  100kg (size24-28)

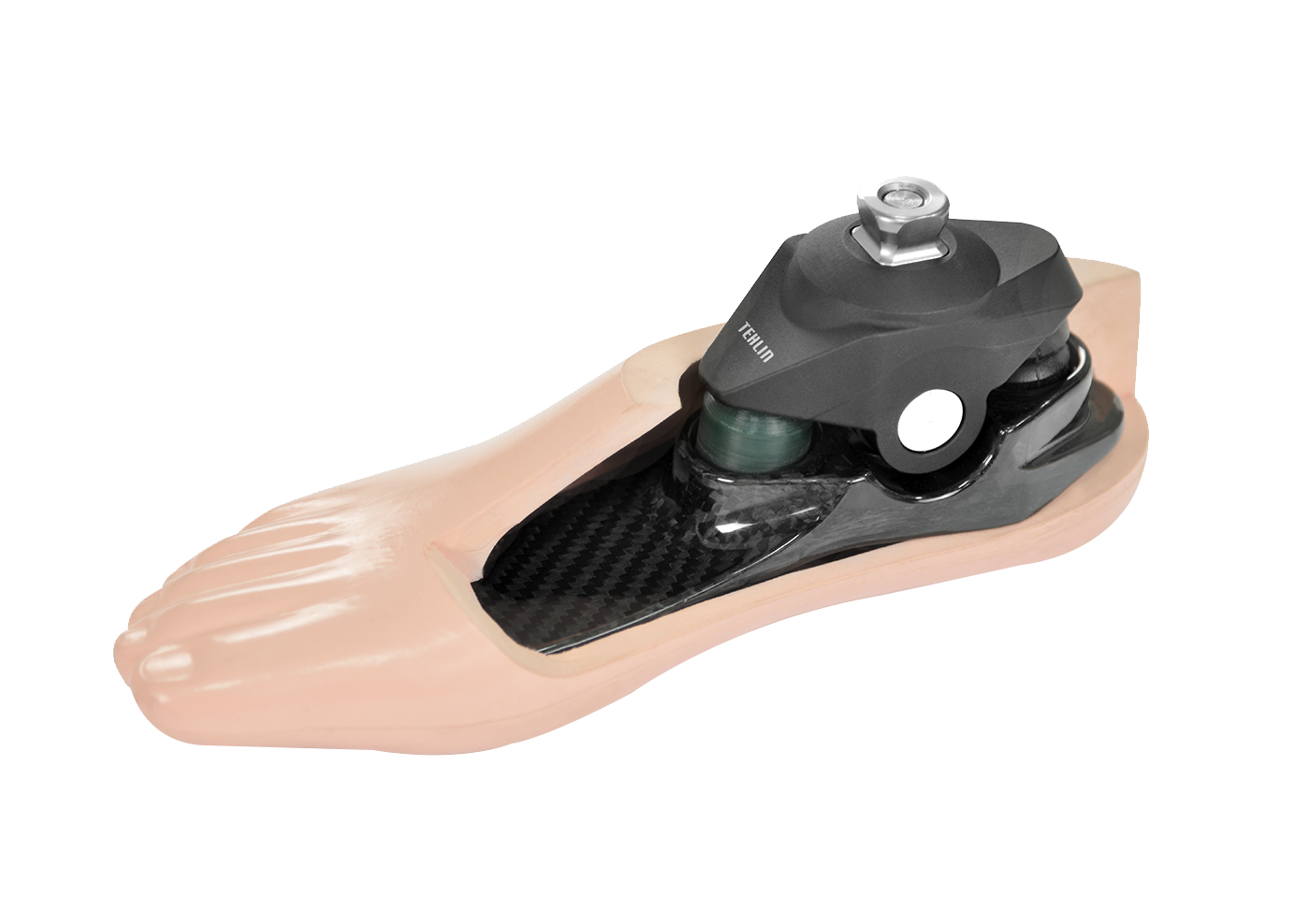

FEATHER CARBON FOOT 2

Excellent elasticity of carbon foot provides the flexibility and comfort when walking.

With multi-axis ankle joint, it provides a better proprioception when walking on the uneven surfaces.

F-TGF-02

Material: Carbon fiber｜PU｜Aluminum｜Rubber

Size (cm): 22｜23｜24｜25｜26｜27｜28

Weight (g): 650｜690｜735｜755｜770｜805｜830

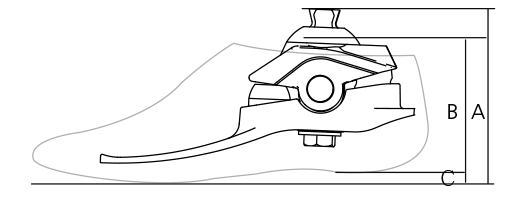

A: System height (mm): 88｜91.5｜92.5｜93｜93.5｜94｜94.5

B: Build height (mm): 73.5｜77｜78｜78.5｜79｜79.5｜80

C: Heel height (mm): 10

Maximum load: 100 kg (size22-23)｜125 kg (size24-28)

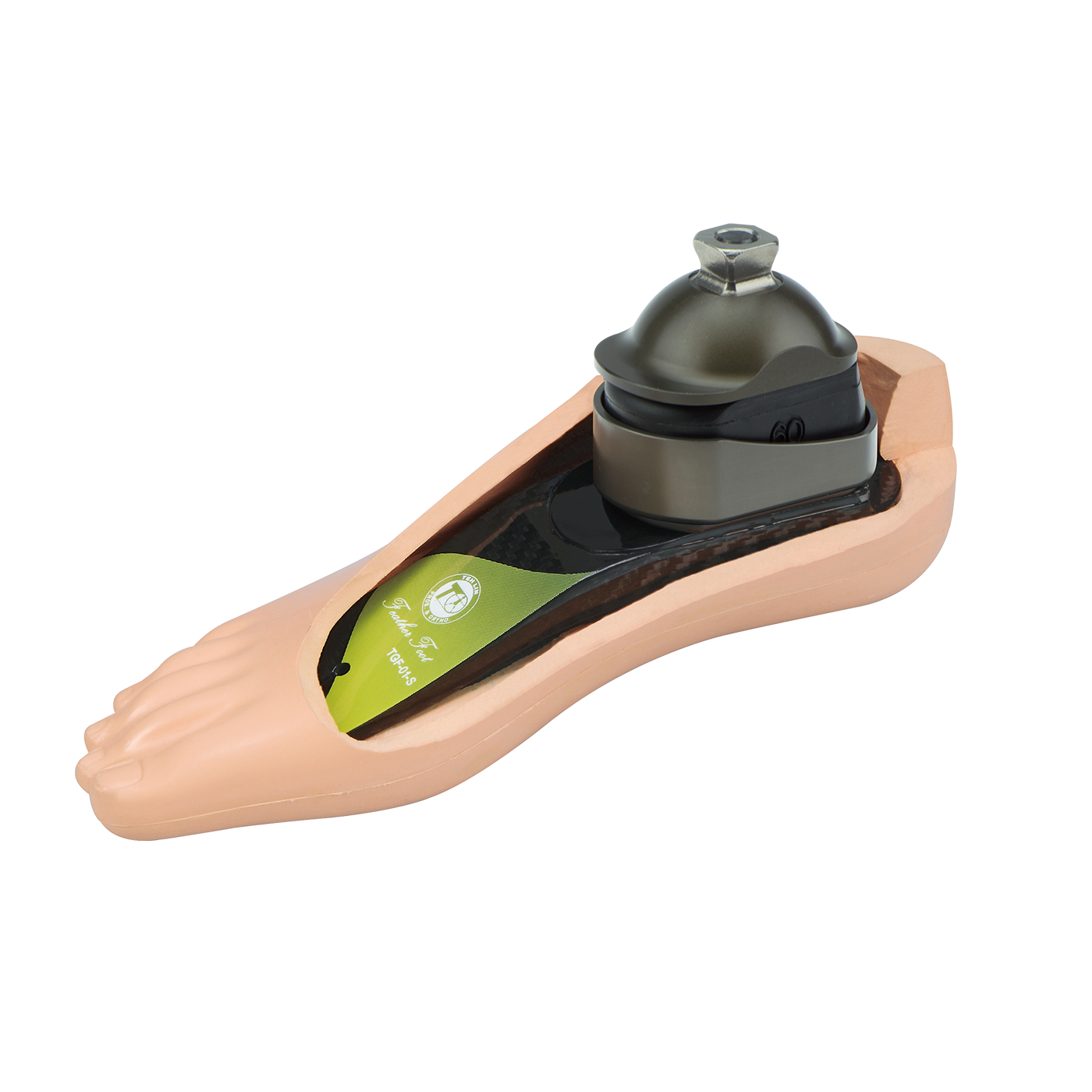

FEATHER CARBON FOOT WITH ANKLE JOINT

Three kinds of hardness Rubber Design (60, 70, 80) replaceable for user.
The Split toe allows the foot to adjust to uneven ground.
Stores and releases energy through its full length.
Smoother roll over to toe.

F-TGF-2RU

Material: Aluminum alloy,Stainless steel seat,Carbon fiber,Synthetic fiber

Size (cm): 22｜23｜24｜25｜26｜27｜28

Weight (g): 620｜655｜710｜720｜735｜760｜775

A: Syste height (mm): 107｜108｜108｜108.5｜108.5｜110.5｜111

B: Build height (mm): 92.5｜93.5｜93.5｜94｜94｜96｜96.5

C: Heel height (mm): 10

Maximum load: 100 kg (size22-23),  125 kg (size24-28)

F-TFF-02

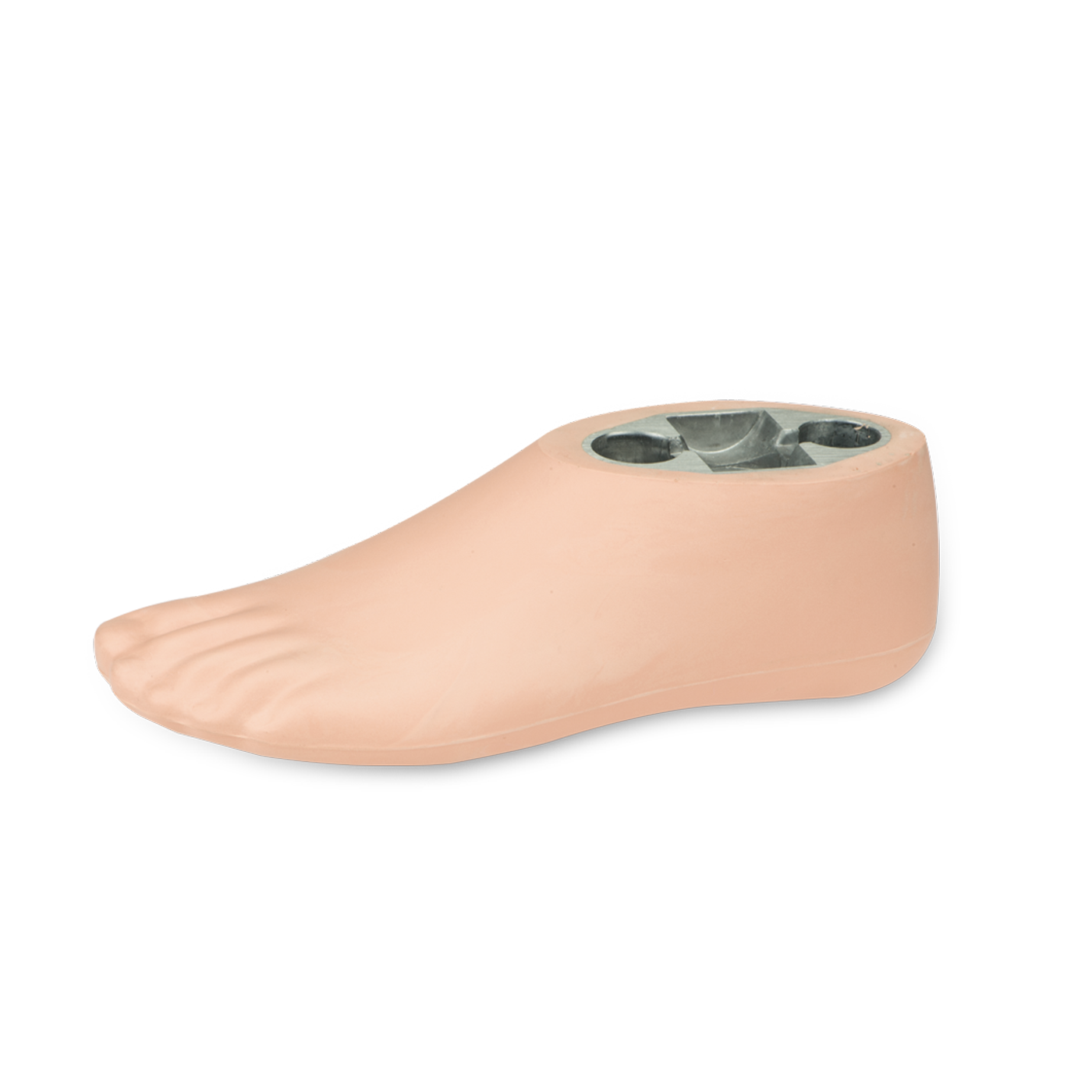

SINGLE AXIS FLAT FOOT WITH TOES

F-TSF-01

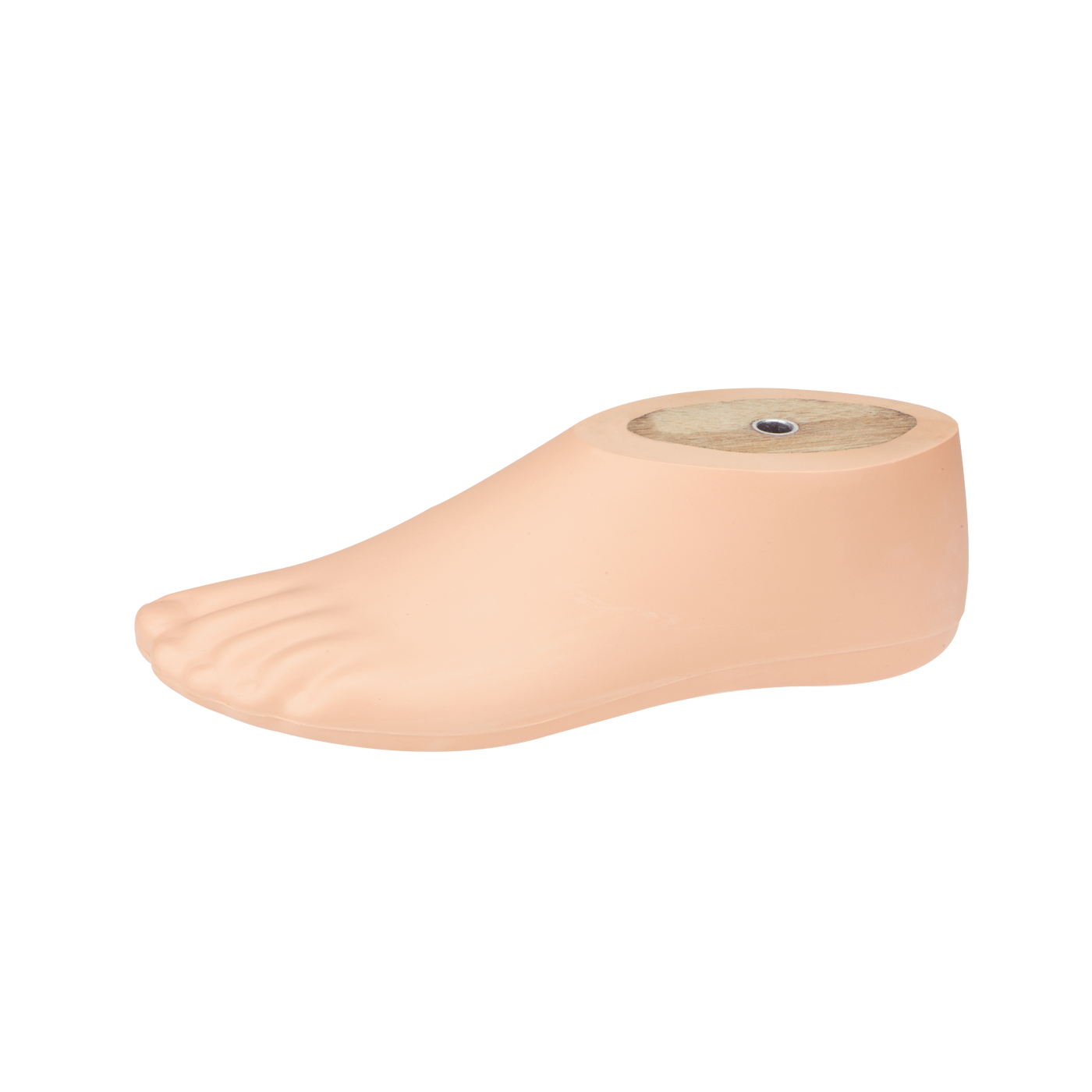

FLAT SACH FOOT WITH TOES

F-TSF-02

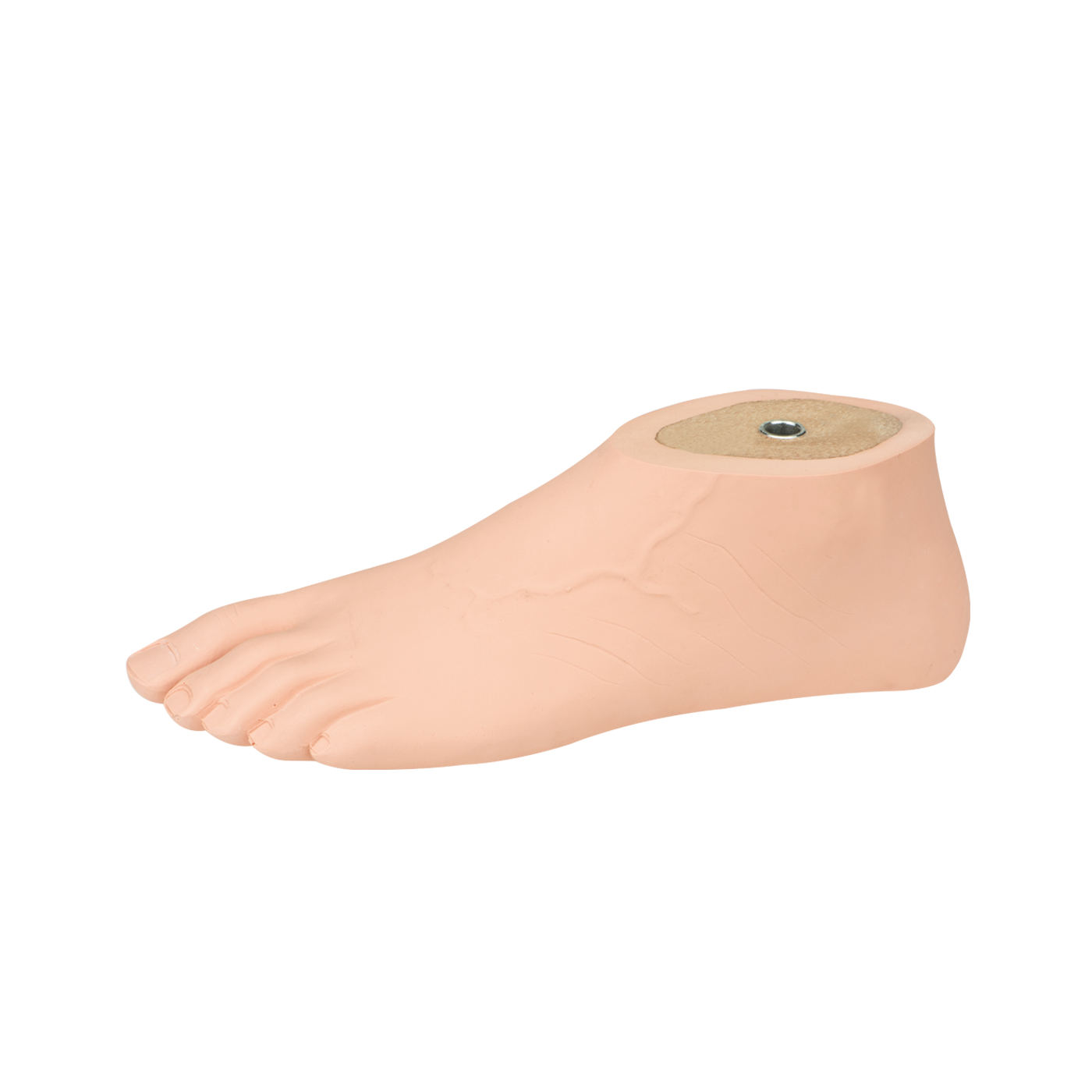

SACH FOOT WITH SPLIT TOE
