| GRAPH-LITE 4 BAR KNEE SERIES Ultra-light graphite construction Classic and simplicity Adjustable extension assist for swing phase control Smoothness of action |
Technical data
- A-TGK-4000
- A-TGK-4001
- A-TGK-4002
- Documents

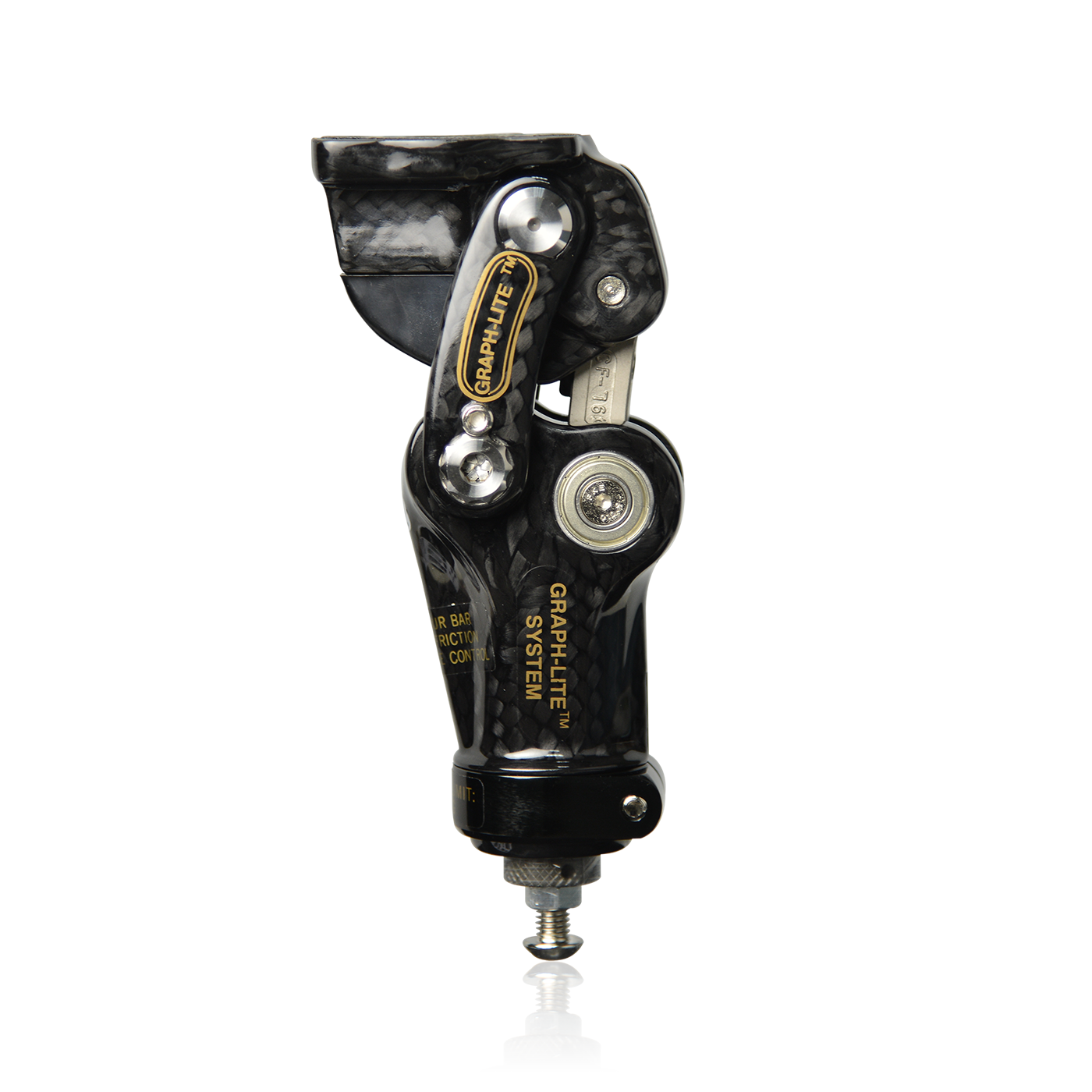

GRAPH-LITE 4 BAR KNEE
Material | Carbon fiber |
System height | 180mm |
System weight | 655g |
Maximum flexion angle | 135˚ |
Maximum body weight | 100 kg |

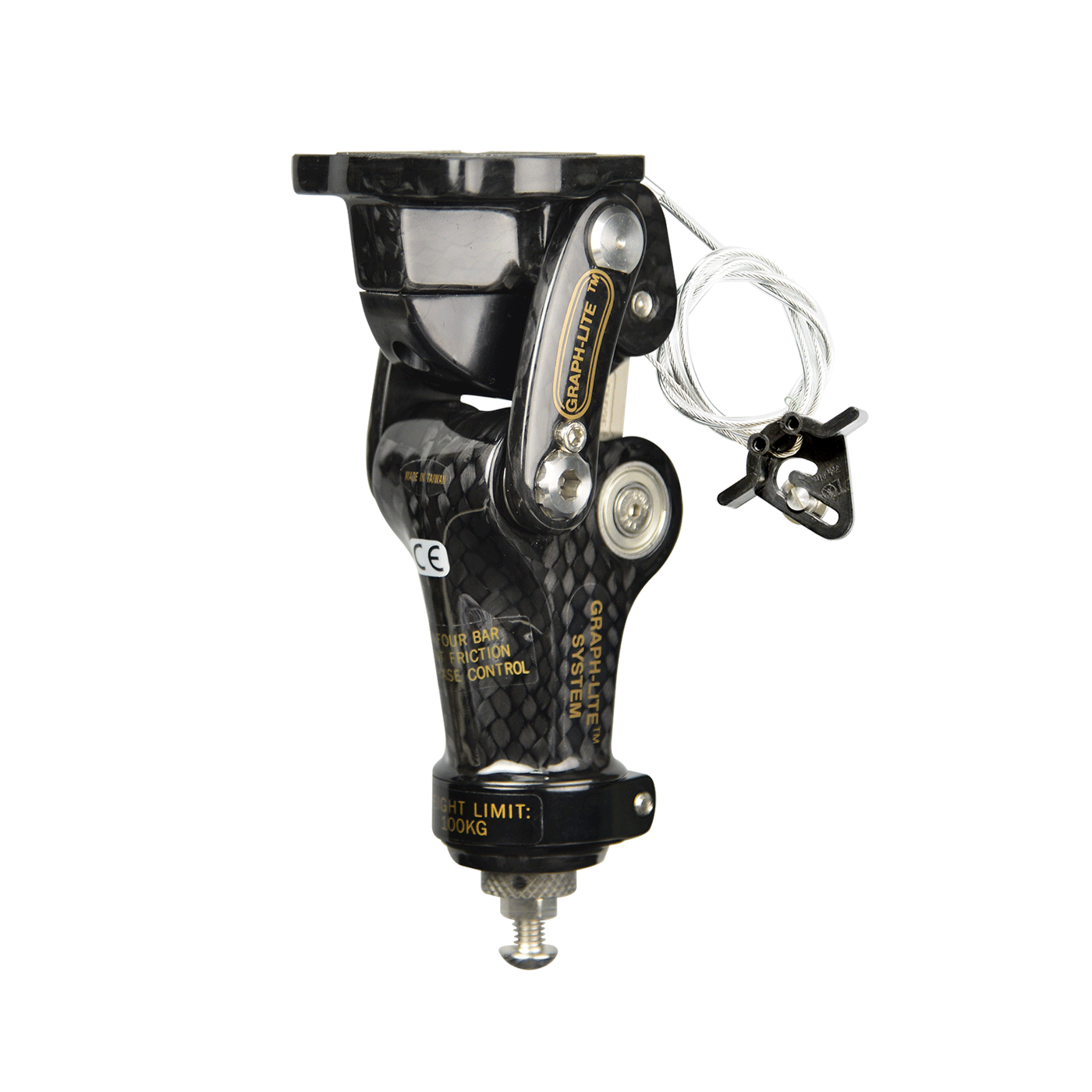

GRAPH-LITE 4 BAR KNEE WITH MANUAL LOCK
Material | Carbon fiber |
System height | 180mm |
System weight | 710g |
Maximum flexion angle | 110˚ |
Maximum body weight | 100 kg |
GRAPH-LITE 4 BAR KNEE WITH 30° MANUAL LOCK
Material | Carbon fiber |
System height | 180mm |
System weight | 680g |
Maximum flexion angle | 110˚ |
Maximum body weight | 100 kg |
